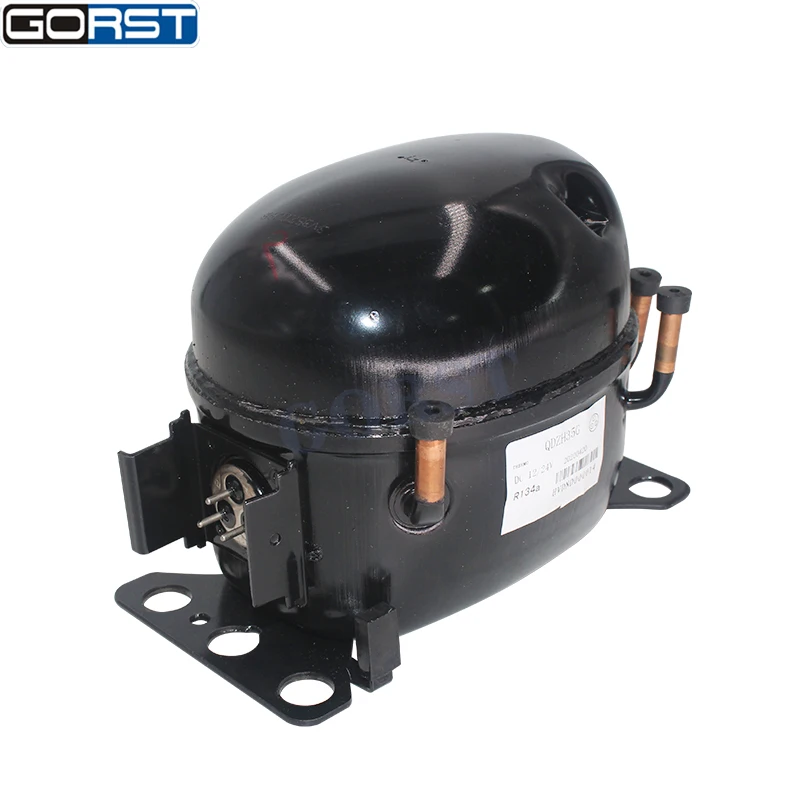

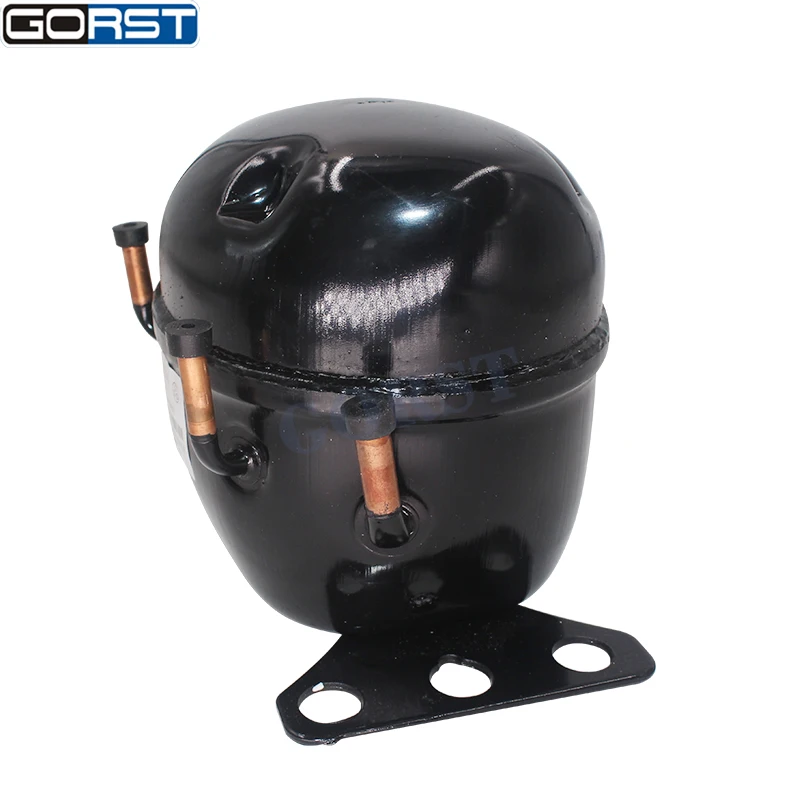

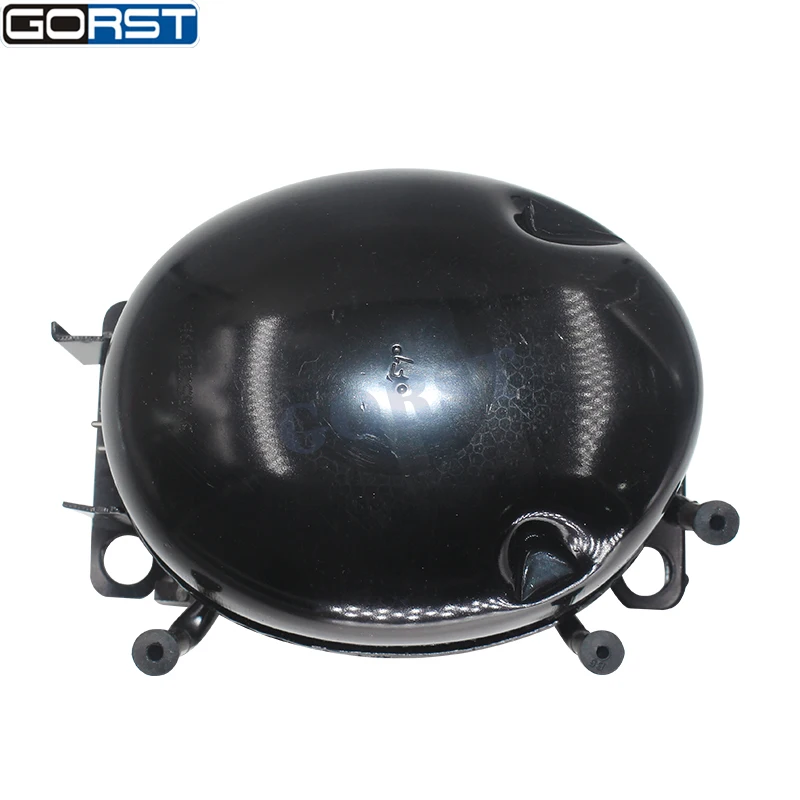

Name:Refrigeration Air Compressor
Item Number:HX-QDZH35G
Interchange Number :QDZH35G
Condition:New
Number Of Piece:1 Set(As you see in the picture)
Pins:8 Pins
Refrigeration Temperature Scope: -18℃~10℃
Shape: Cabinet Type (Open Outward)
Power Supply Type: DC
Type: Compressor Car Refrigerator
Voltage:12V / 24V
Refrigerant:R134a
Certification: CE
1) QDZH35G, DC series, use R134A refrigerant;
2) Voltage application 12V and 24V;
3) Cooling type: ST or FAN;
4) Application: Low Back Pressure, Middle Back Pressure;
5) Max cooling capacity 100W
6) power consumption in watt is 17 to 78w depends on rpm setting and back-pressure inside system
Material: Plastic And Metal
Color: Black
Installation:1：1 Replacement
Packing:Box Or Envelope
Fitment: For Danfoss BD35 DC compressors
For water dispenser, small refrigerator, small freezer, wine cellar and other small cooling appliances used for car, ship and camping.
|
Model
|
Displacement (cm3)
|
Rotate Speed (rpm)
|
Capacity (W)
|
COP
|
EER
|
Oil charge
|
Cooling Type
|
Power Supply
|
|
-23.3ºC (ASHRAE)
|
|
W
|
Kcal/h
|
Btu/h
|
W/W
|
Btu/W.h
|
ml
|
|
QDZH35G
|
3.5
|
2000
|
60.0
|
51.9
|
204.6
|
1.08
|
3.68
|
160
|
FC
|
12/24V
(DC)
|
Installation

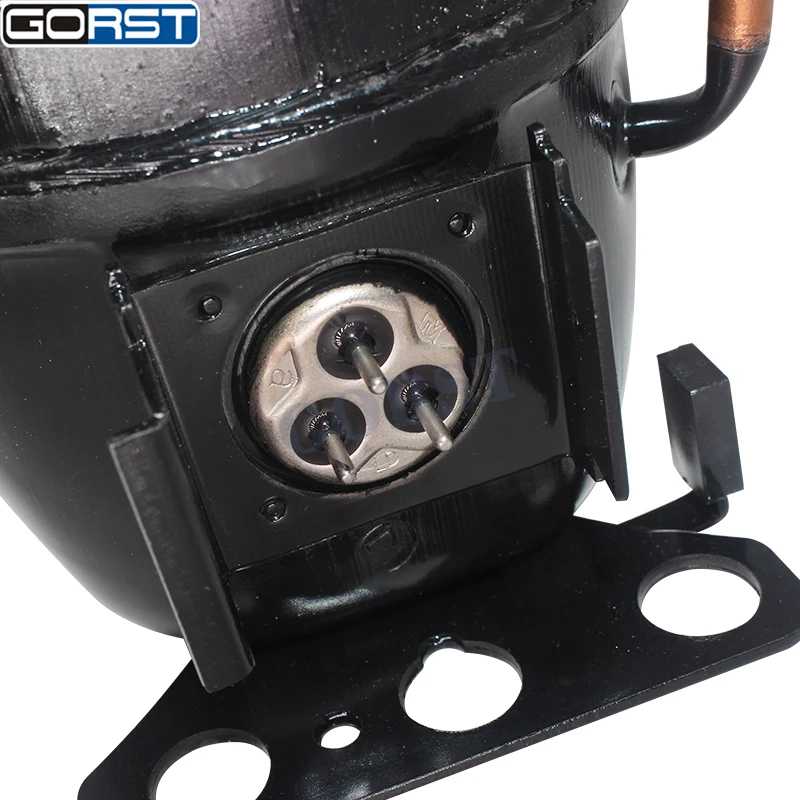

Connect the terminal plug from the electronic unit to the compressor terminal. Mount the electronic unit
on the compressor by snapping the cover over the screw head.
Power supply
The electronic unit must always be connected directly to the battery poles . Connect the plus to + and
the minus to -, otherwise the electronic unit
will not work. The electronic unit is protected against reverse battery connection.For protection of the
installation, a fusemust be mounted in the + cable as close to the battery as possible. 15A fuse for
12V and 7.5A fuse for 24V circuits are recommended.If a main switch is used, it should be rated to a
current of min. 20A. The wire dimensions in Table. 2 must be observed. Avoid extra junctions in the
power supply system to prevent voltage drop from affecting the battery protection setting.
Battery protection
The compressor is stopped and re-started again according to the decided voltage limits measured on the
+ and - terminals of the
electronic unit. The standard settings for 12V and 24V power supply systems
appear from Table. 3. Other settings are optional if a connection which includes a resistor
is established between terminals C and P.
Thermostat
The thermostat is connected between the terminals C and T. Without any resistor in the control circuit,
the compressor with electronic unit
will run with a fixed speed of 2,000rpm when the thermostat is
switched on. Other fixed compressor speeds in the range between 2,000 and 3,500 rpm can be obtained
when a resistor is installed to adjust the voltage (v) of the control circuit.
Fan
A fan can be connected between the terminals + and F. Connect the plus to + and the minus to F.
Since the output voltage between the terminals + and F is always regulated to 12V,a 12V fan must be
used for both 12V and 24V power supply systems.The fan output can supply a continuous current of
0.5A avg . A higher current draw is allowed for 2 seconds during start.
LED
A 10mA light emitting diode(LED) can be connected between the terminals + and D. In case the
electronic unit records an operational error, the diode will flash a number of times. The number of flashes
depends on what kind of operational error was recorded. Each flash will last 1/5 second. After the actual
number of flashes there will be a delay with no flashes, so that the sequence for each error recording is
repeated every 3 minutes
